8 MP AcuSense Vandal Fixed Dome Network Camera

$1,800.00

The 5MP/6MP/4K varifocal lens model, a high-resolution network camera will be added to the lineup of the well-established new S series. Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes. It realizes high-quality and clearer images even in low-light and wide-range shooting scenes. With the released of total 34 models, including fixed focus, black body, smoke dome, and derivative models such as heavy salt damage resistant models, to support a wide variety of security monitoring applications.

DS-2CD2183G2-IU

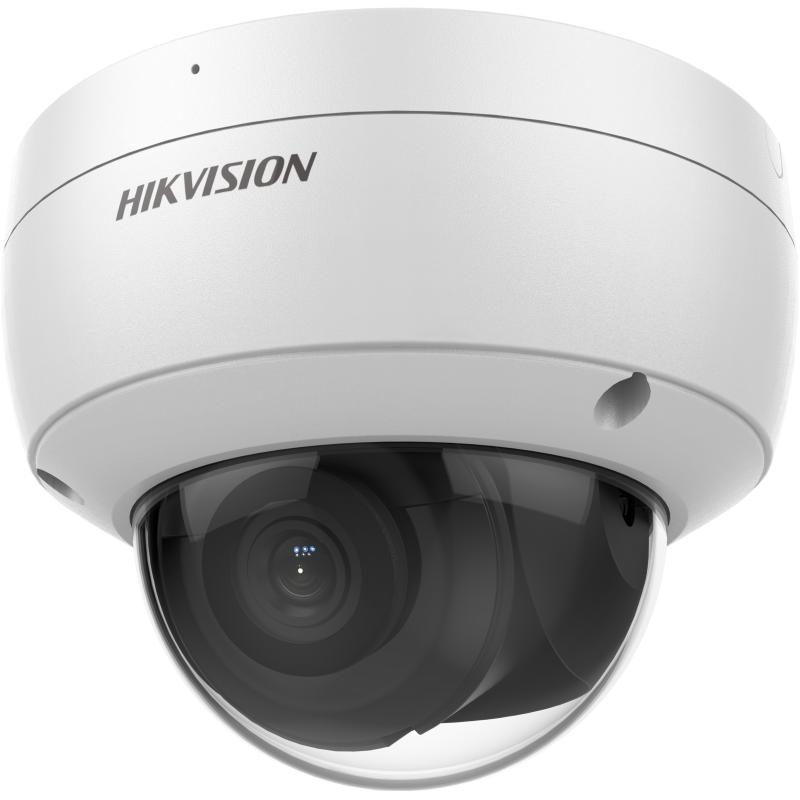

8 MP AcuSense Fixed Dome Network Camera

Key Features
Resolution High quality imaging with 8 MP resolution
WDR Clear imaging against strong backlight with 120 dB true WDR technology
Compression Efficient H.265+ compression technology
Smart Detection Human and vehicle target classification based on deep learning
Audio Built-in microphone for real-time audio security
Protection Water and dust resistant: IP67
Vandal Resistance IK10
Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Lens
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
2.8 mm FOV Horizontal FOV 107°, Vertical FOV 57°, Diagonal FOV 128°
4 mm FOV Horizontal FOV 87°, Vertical FOV 46°, Diagonal FOV 105°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
2.8 mm Detect 88 m, Observe 35 m, Recognize 17 m, Identify 9 m
4 mm Detect 108 m, Observe 43 m, Recognize 22 m, Identify 11 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 20 fps at 3840 × 2160
50 Hz: 25 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
60 Hz: 20 fps at 3840 × 2160
60 Hz: 30 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
Sub-Stream 50 Hz: 25 fps at 1280 × 720, 640 × 480, 640 × 360
60 Hz: 30 fps at 1280 × 720, 640 × 480, 640 × 360
Third Stream 50 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360
60 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360
Video Bit Rate 32 Kbps to 16 Mbps
Video Compression Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Bit Rate Control CBR, VBR
Region of Interest 1 fixed region for main stream and sub-stream
Audio
Audio Type Mono sound
Audio Compression G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Sampling Rate 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface Profile S, Profile G, ISAPI, SDK
User/Host Up to 32 users
Security Password protection, HTTPS encryption, IP address filter, Security Audit Log, TLS 1.1/1.2, WSSE and digest authentication
Network Storage NAS, NFS, SMB/CIFS, Auto Network Replenishment
Client iVMS-4200, Hik-Connect, Hik-Central
Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, supports microSD / microSDHC / microSDXC card, up to 512 GB
Reset Key Yes
Built-in Microphone Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Target Type Support Human and vehicle alarm triggering
Linkage Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture
Deep Learning Function
Perimeter Protection Line crossing, intrusion
Target Classification Human and vehicle
General
Power 12 VDC ± 25%, 0.5 A, max. 6 W
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
Dimension Ø 121.4 mm × 92.2 mm
Package Dimension 150 mm × 150 mm × 141 mm
Weight Approx. 550 g
Weight with Package Approx. 800 g
Storage Conditions -30 °C to 60 °C, humidity 95% or less, non-condensing
Operating Conditions -30 °C to 60 °C, humidity 95% or less, non-condensing
General Function Heartbeat, anti-flicker, password reset via email, pixel counter
Available Models
Models DS-2CD2183G2-IU(2.8mm)
DS-2CD2183G2-IU(4mm)
Optional Accessories
Accessories DS-1272ZJ-120 Wall Mount
DS-1272ZJ-120B Wall Mount
DS-1271ZJ-120 Pendant Mount
DS-1275ZJ-SUS Vertical Pole Mount
DS-1276ZJ-SUS Corner Mount
DS-1280ZJ-DM46 Junction Box
DS-2280ZJ-WA120 Junction Box
DS-2210ZJ-WA-120 Pendant Mount
DS-2200ZJ-WA-120 Wall Mount
DS-2200ZJ-WAJ-120 Wall Mount
  • High quality imaging with 8 MP resolution
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

Product Information

  • High quality imaging with 8 MP resolution
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
